Plot Method for net_stability

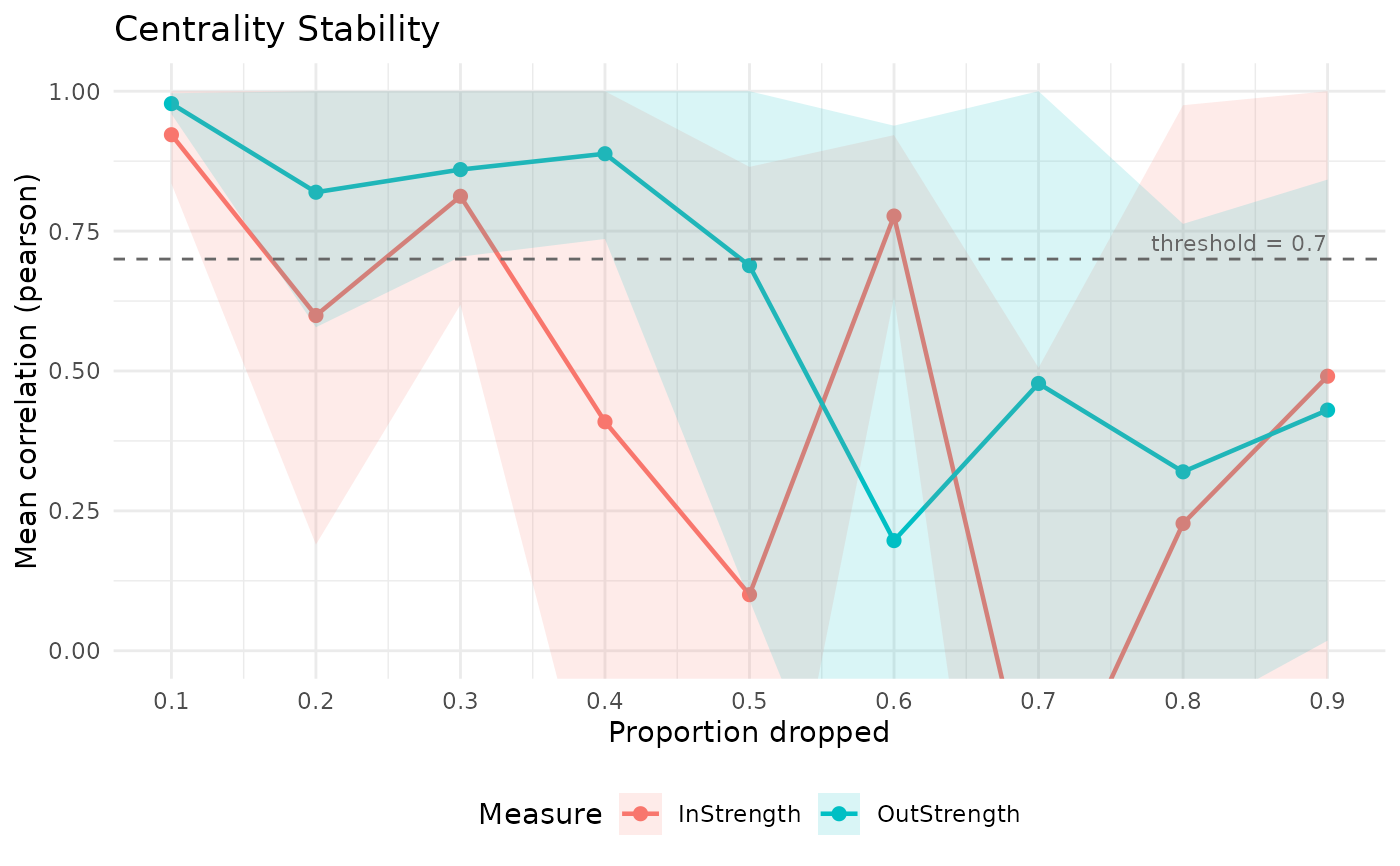

Plots mean correlation vs drop proportion for each centrality measure. The CS-coefficient is marked where the curve crosses the threshold.

Usage

# S3 method for class 'net_stability'
plot(x, ...)

Arguments

x

A net_stability object.

...

Additional arguments (ignored).

Value

A ggplot object (invisibly).

Examples

# \donttest{
set.seed(1)
seqs <- data.frame(
  V1 = sample(c("A","B","C"), 30, TRUE),
  V2 = sample(c("A","B","C"), 30, TRUE),
  V3 = sample(c("A","B","C"), 30, TRUE)
)
net <- build_network(seqs, method = "relative")
stab <- centrality_stability(net, measures = c("InStrength","OutStrength"),
                              iter = 10)
plot(stab)

# }
